ANACONDA

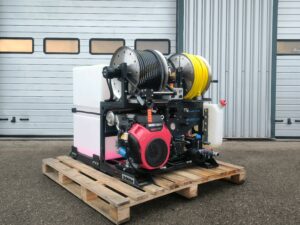

ANACONDA very functional device with small dimensions, designed for hydrodynamic cleaning of sanitary, rainwater and industrial pipes with a maximum diameter of up to 500 mm (depending on the version). The device has been developed and manufactured by KanRo Ltd® based on many years of experience in the sale and service of high-pressure cleaning equipment.

ANACONDA high-pressure jetting machin can be mounted on standard 1- and 2-axis transport trailers. In addition, trailers can be equipped with a factory frame with a tarpaulin or a plastic housing. It can also be fitted to commercial van vehicles. Everywhere where big cleaning cars cannot be reached, ANACONDA will be perfect.

The ANACONDA device has been equipped with a reliable high-pressure pump from the renowned European manufacturer UDOR from Italy. The pump with ceramic plungers, thanks to which it is possible to work with the device using hot water. It can be also operated by one person from panel control or also with remote radio control.

AREAS OF APPLICATION

cleaning the sewerage network

cleaning rainwater drainage

cleaning the water supply network

cleaning drainage pipes

pressure washer

watering greenery

SPECIFICATION	ANAKONDA - 150/75	ANAKONDA - 150/85	ANAKONDA - 200/60
DRIVE	BRIGGS & STRATTON 35 KM petrol engine	BRIGGS & STRATTON 37 KM petrol engine	BRIGGS & STRATTON 37 KM petrol engine
ENGINE	the engine with an electric starter	the engine with an electric starter	the engine with an electric starter
PUMP	UDOR triplex plunger pump fitted with ceramic plungers; pressure regulator and manometer	UDOR triplex plunger pump fitted with ceramic plungers; pressure regulator and manometer	UDOR triplex plunger pump fitted with ceramic plungers; pressure regulator and manometer
PUMP EFFICIENCY	150 bar working pressure, 75 l/min. flow rate	150 bar working pressure, 85 l/min. flow rate	200 bar working pressure, 60 l/min. flow rate
WATER TANK	with a capacity of 650 l (optionally 800 l, 1000 l), equipped with an overflow of water	with a capacity of 650 l (optionally 800 l, 1000 l), equipped with an overflow of water	with a capacity of 650 l (optionally 800 l, 1000 l), equipped with an overflow of water
PANEL CONTROL	panel control located in the device; safety switch; optional - remote radio control	panel control located in the device; safety switch; optional - remote radio control	panel control located in the device; safety switch; optional - remote radio control
HIGH-PRESSURE HOSE	hose 60 m long, inside diameter of the hose NW 13 mm with coupling ½''	hose 60 m long, inside diameter of the hose NW 16 mm with coupling ½''	hose 80 m long, inside diameter of the hose NW 13 mm with coupling ½''
HIGH-PRESSURE HOSE REEL	hose reel with hydraulic drive with smooth, stepless speed control in both directions and the free-running position with the rotating union and three-way valve, hose reel is equipped with a guide for even placement of the hose; hose reel is located on the arm with horizontal repeal by 90˚ with the possibility of additional pivoting of 135˚ in horizontal	hose reel with hydraulic drive with smooth, stepless speed control in both directions and the free-running position with the rotating union and three-way valve, hose reel is equipped with a guide for even placement of the hose; hose reel is located on the arm with horizontal repeal by 90˚ with the possibility of additional pivoting of 135˚ in horizontal	hose reel with hydraulic drive with smooth, stepless speed control in both directions and the free-running position with the rotating union and three-way valve, hose reel is equipped with a guide for even placement of the hose; hose reel is located on the arm with horizontal repeal by 90˚ with the possibility of additional pivoting of 135˚ in horizontal
FILLING HOSE	hose length 50 m NW 19 mm	hose length 50 m NW 19 mm	hose length 50 m NW 19 mm
APPLICATION RANGE	pipes diameter max 500 mm	pipes diameter max 500 mm	pipes diameter max 500 mm
STANDARD EQUIPMENT	spraygun and lanc, digital hour meter, standard nozzle open, standard nozzle blind, rinsing nozzle "GRENADE", piercing nozzle "QUATTRO", protection against running dry, protection against working without oil, user manual	spraygun and lanc, digital hour meter, standard nozzle open, standard nozzle blind, rinsing nozzle "GRENADE", piercing nozzle "QUATTRO", protection against running dry, protection against working without oil, user manual	spraygun and lanc, digital hour meter, standard nozzle open, standard nozzle blind, rinsing nozzle "GRENADE", piercing nozzle "QUATTRO", protection against running dry, protection against working without oil, user manual
DELIVERY AND TRAINING	delivery and training of designated employees	delivery and training of designated employees	delivery and training of designated employees
